3P 800imp/kw IEC-62053-21/62052-11 WIFI conneection issue
Hi,
Subject Wifi Energy Meter using since couple of years, there is no issue, working perfectly. Recently, I changed the meter location to my new house. Now i am facing the issue of connecting the meter to the wifi.
I am not able to find iMeter_xxxxxx while searching in the wifi. (My device is connected with Power, and it is showing a red light "WIFI" and "RUN" is green.
Step-1 to search iMeter_xxxxxx in the wifi (But I cant find it)
Setp-2: Goto IAMMETER app, inside "Local" and the Devices.
Need your help to resolve the issue.
Regards
M.Raza
Now wifi configuration issue resolved. I have reset my wifi router.
The new issue is Wifi Red light appears on this meter. The device is connected to the wifi but is not able to Green and data is not transferring.
I found "Net metering " is enabled in the SN in your account, but there is no NEM data uploaded in the api log (this SN is produced on 2020, I am not sure whether it would support NEM).
Please check whether you need NEM, if not ,please disable it (Meter->edit-> "set normal mode from NEM")
Thanks for your response. True, I have been using net metering since 2021, and it is working fine.
I have attached the report and "monitoring JSON script" for your review and advice for enabling the data.


Hi, it is obvious that the NEM is not enabled now.
I am not sure why the NEM is disabled
Please try to enable the NEM by this api firstly
And check whether this issue will be resolved after the NEM is enabled.
Thank you so much, the issue has been resolved by taken following action:

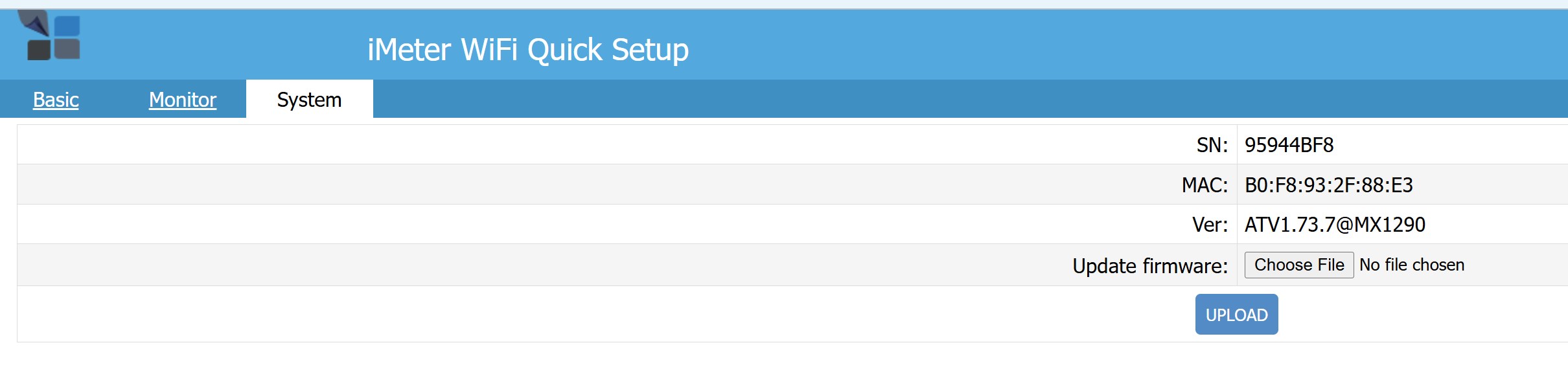

- First, I have updated my Firmware from 1.73 to i.91.063T2

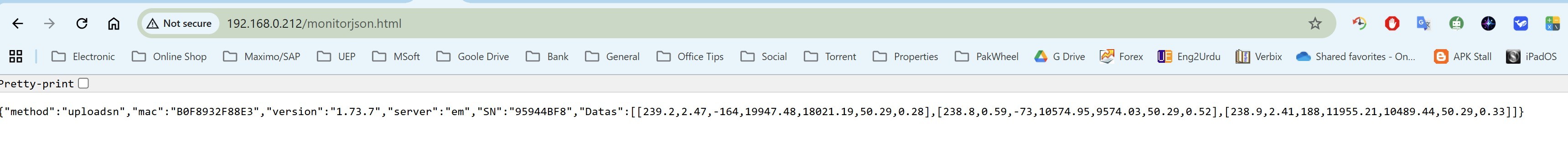

- Check & verify data through Jason (My IP address/monitorjson)
- Turn on NEM function by an API call (http://my ip address /api/netmetering?npm=1)
- Change from "Normal" to "Net Metering" through drop-down (Meters->Edit->Energy metering mode = Net metering)
I need your advice on a correction:

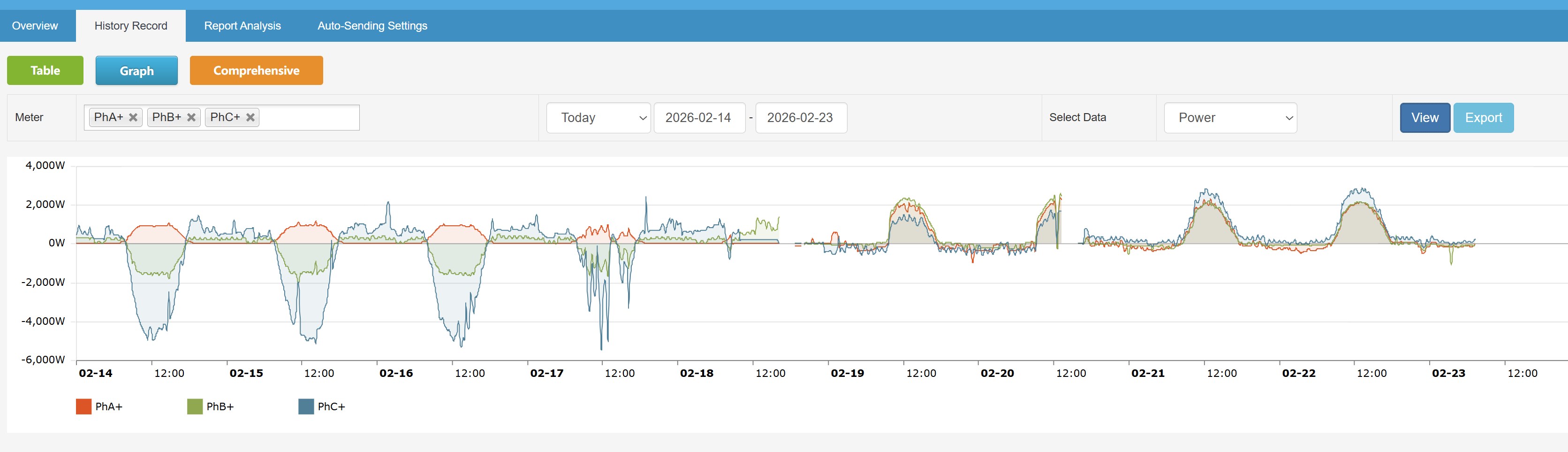

Previously, the graph showed a downward export of electricity, but it is now showing an upward import of electricity. (It is possible that the CT direction is reversed or the three-phase connections on the meter are incorrect.)

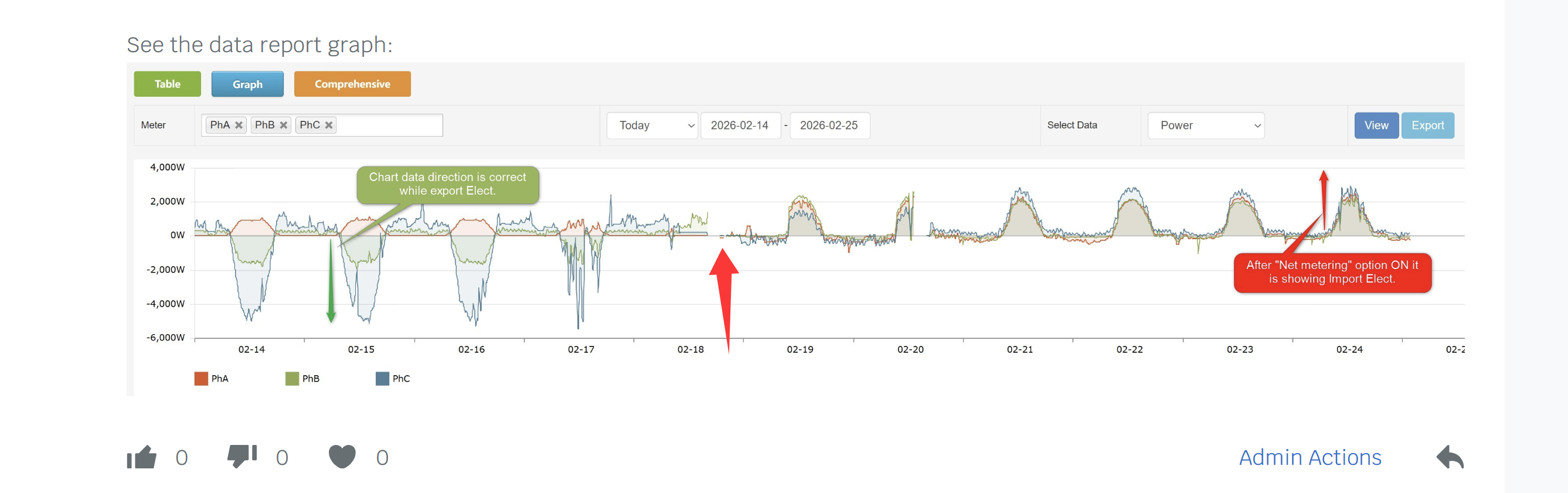

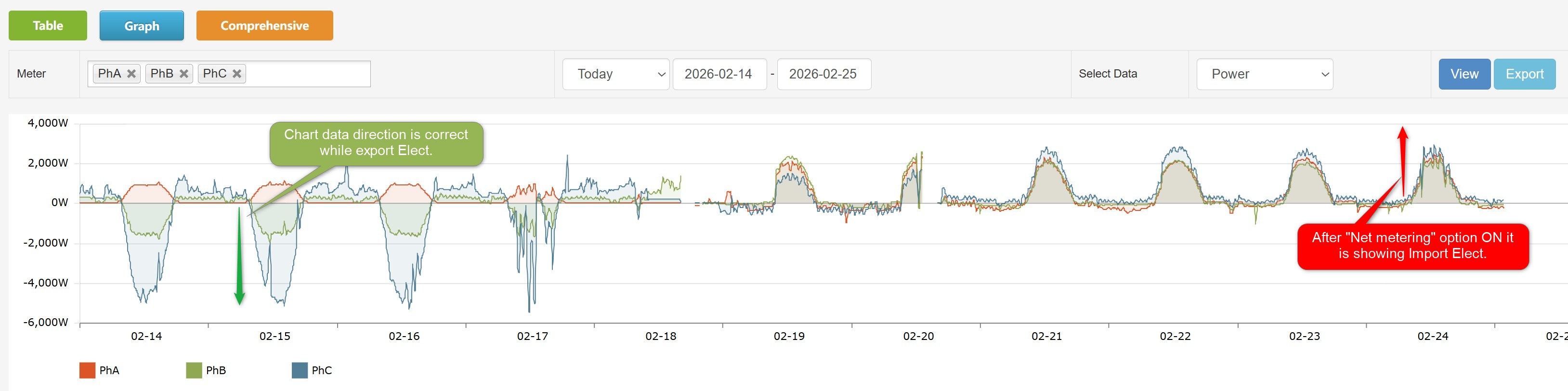

See the data report graph:

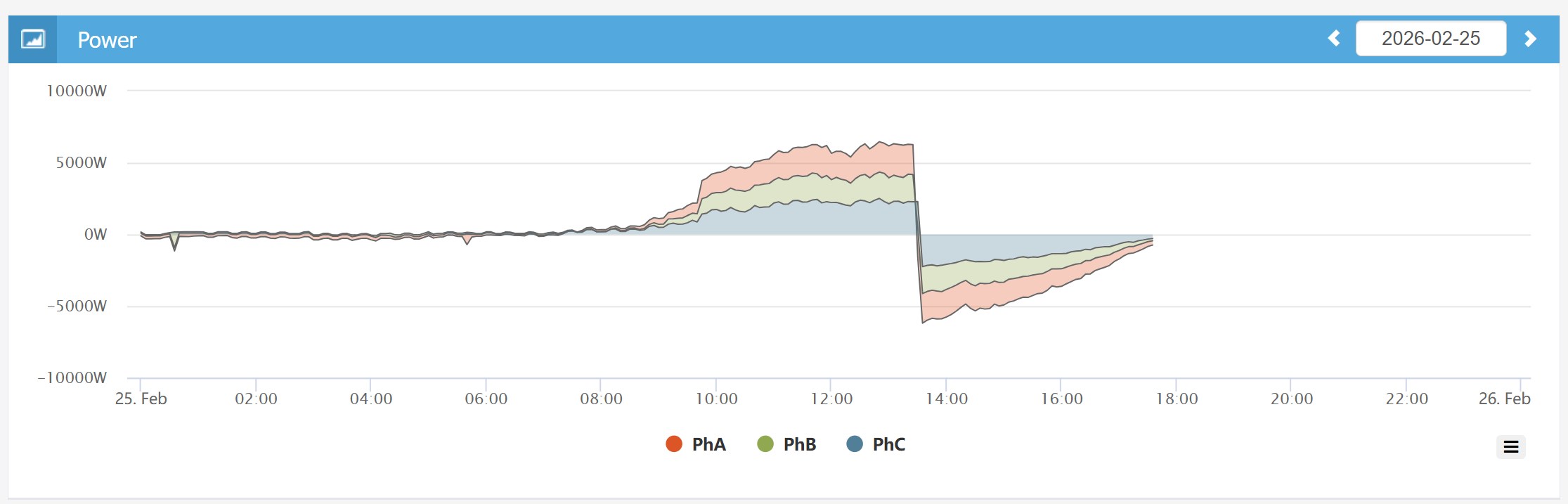

This pic only show the independent three phase power value, has nothing to do with the NEM setting.
And the three phase power value changed from the red pointer time ,not the NEM setting time(recent two days).
Please check whether someone changed the CT direction at that time.
Once again Thanks for your support & Guide. The issue has been resolved.
